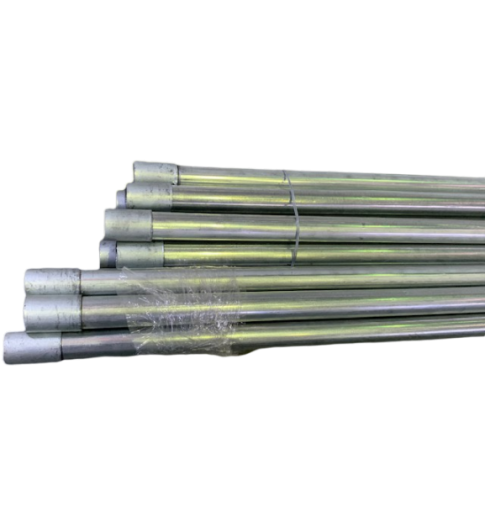

SPINNE Class 4 Conduit Pipe
As low as
SGD 0.00
Product Code:
Class 4 Conduit Pipe
Availability:In stock
- Manufactured in accordance with BS4568 Part 1: 1970 (CLASS 4) / IEC 61386-21
- Heavy corrosion protection on both interior and exterior
- 3.75m per length
- Supplied with one solid coupling and one PVC End Cap
| Nominal Size (mm) | Dimension (mm) | Weight (kg) | ||||||
| Outer Diameter | Nominal Wall Thickness |
Length of Threads | ||||||
| min. | max. | min. | max. | min. | max. | |||
| 20 | 19.7 | 20 | 1.6 ± 0.15 | 13 | 15 | 2.55 | 3.23 | |
| 25 | 24.6 | 25 | 1.6 ± 0.15 | 16 | 18 | 3.3 | 4.1 | |
| 32 | 31.6 | 32 | 1.6 ± 0.15 | 18 | 20 | 4.25 | 5.37 | |
